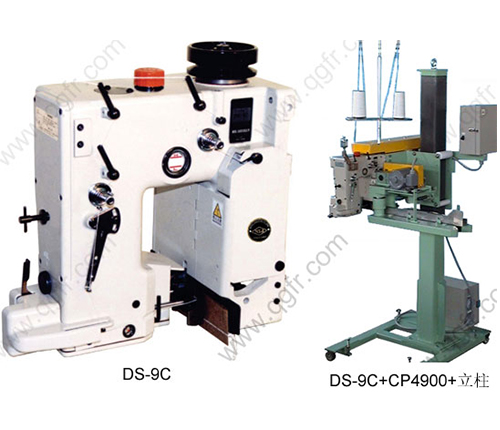

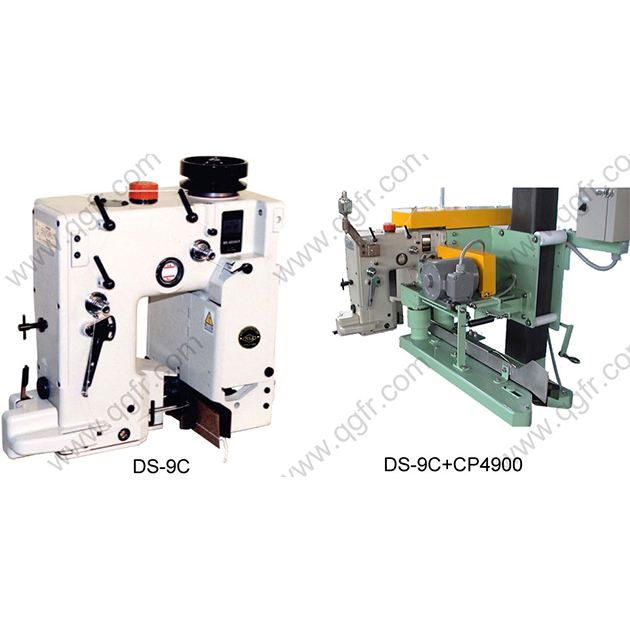

DS-9C High Speed Sewing Machine
product description
DS-9C Heavy Duty Bag Closing Machine: The fastest single needle bag closing machine (2700 rpm) for all kinds of filled bags. Well-balanced rotational parts ensure very little vibration. Ideally suited for use with height-speed bag filling lines where conveyor speed of 25m/min. All parts are protected against the effects of dust. A unique but simple enclosed oil bath lubrication system greatly extends the life of moving parts and reduces maintenance costs. Model DS-99 is equipped with pneumatic guillotine type crepe-tape cutter.
1. Start-stop: automatically by photoswitch
2. Thread chain cutter: automatically by air cylinder operated guillotine type cutter
3. Stitch length: adjustable from 7-10.5 mm
4. Seam: Double thread chain stitch (Type 401)
5. Standard needle: DR-H30 #26
6. Speed: up to 2700 RPM, depending on sewing material and operation
7. Net weight: 45Kg
8. Oiling: By Oil bath
1. Start-stop: automatically by photoswitch
2. Thread chain cutter: automatically by air cylinder operated guillotine type cutter
3. Stitch length: adjustable from 7-10.5 mm
4. Seam: Double thread chain stitch (Type 401)
5. Standard needle: DR-H30 #26
6. Speed: up to 2700 RPM, depending on sewing material and operation
7. Net weight: 45Kg
8. Oiling: By Oil bath
Technical Parameters
| Speed (max.) | 2700 r.p.m. |
| Sewing thickness | 8mm |
| Stitch length | 7-11.5mm |
| Stitch type | double threads chain 401 |
| Thread | cotton, polyester |
| Needle type | DR-H30#26 |
| Net weight | 45KGS |
| Thread cutting | tape/threads auto cutting |
